Advanced Wireless Lens Control Systems for the Film & TV Industries.

The MK3 system is now shipping direct from our store with international distribution coming late 2013.

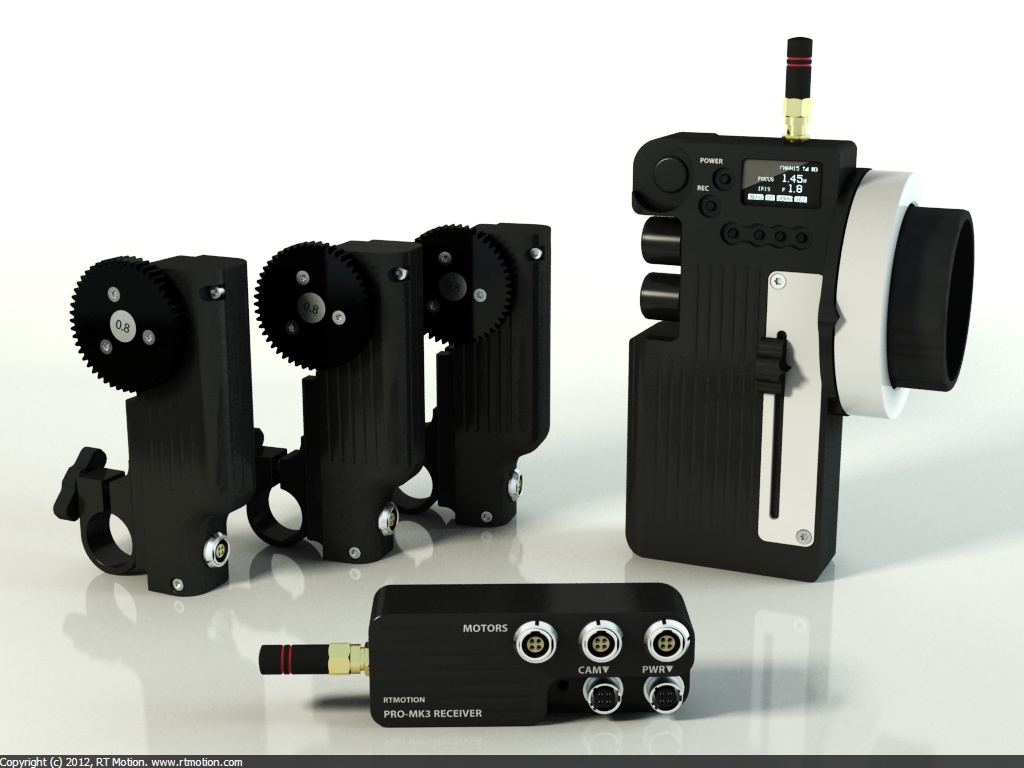

Quiet, strong and reliable, the MK3 system brings top-end performance and 3D/ multi-motor capabilities into a new price bracket.

MK3 LCS Features

  • Automatic lens calibration.
  • Adjustable digital motor response.
  • NEW wireless protocol which improves performance in crowded RF spaces.
  • Support for wired operation.
  • OLED menu screen with easy to use menu system.
  • Support for full 3D rig control.
  • Micro USB port for PC control & firmware updates.
  • Run-stop support for Arri and Red cameras.
  • Simultaneous control of all axis.
  • FCC/IC/CE Certified radio, World wide licence free 2.4 GHz ISM band.
  • All precision CNC milled from aerospace grade aluminium , Hard anodized.
  • 2 Years Warranty.
  • The RT Motion system allows users to expand their kit easily, as well as update their own firmware with new features as they become available such as Timelapse and Lens Mapping etc.

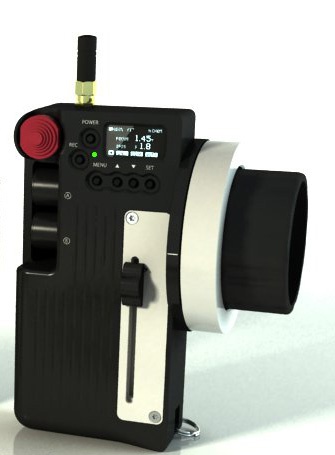

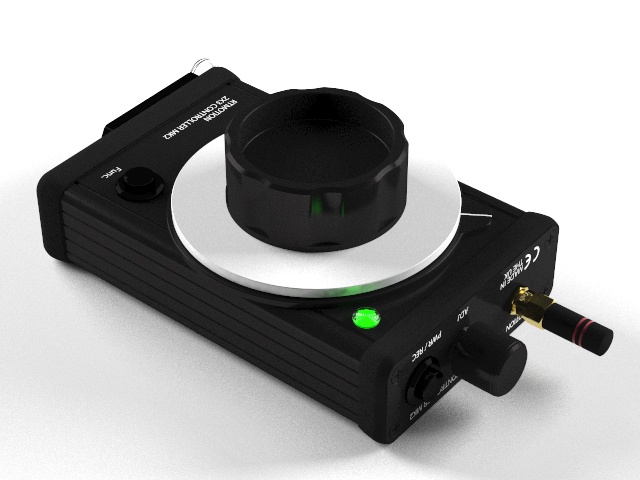

MK3 Controller

  • Fluid-feel aluminium control knob with high precision digital encoder.
  • Interchangeable snap on/off marking rings.
  • Wired-Mode, Wire the Controller to the Receiver to turn off and bypass the wireless link.
  • Uses a Canon style LP-E6 battery for over 30 hrs of continuous use, can also be powered from the micro USB port on the side.
  • Reversible knob rotation.
  • Strong lanyard mounting point.
  • Standard 1/4"-20 thread on back.
  • Low battery level warning.
  • Wireless signal strength level and selectable RF channels.
  • Multiple motor mirror for 3D.
  • 3x configurable short cut buttons.
  • Micro USB port.

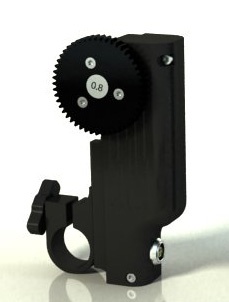

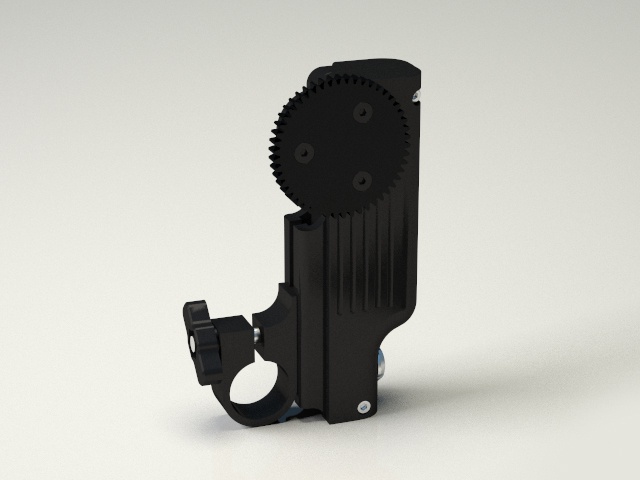

MK3 Digital Lens Motor

  • Quiet with high motor torque.
  • Unique BLDC motor with integrated drive electronics.
    • 4x the service life of brushed motors (No brush or commutator sparking).
    • No motor cogging.
    • High precision digital encoder.
    • Faster response.
    • Increases smoothness and dynamics.
  • Approx 235g (including gear and 15mm clamp).
  • 106x43x24mm ( excluding gear ).
  • Automatic lens calibration.
  • Gears available in standard mod sizes 0.4 / 0.5 / 0.6 / 0.8 and 0.8 wide.
  • Adjustable motor response.
  • Adjustable height and support for 15mm and 19mm rods. (Clamp is tool-free and can be flipped)
  • Automatic torque control.
  • Unique electronic backlash compensation ( eliminates backlash ).

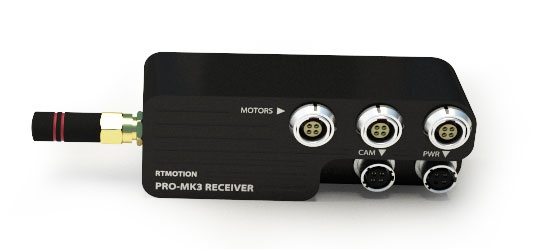

MK3 Receiver

  • As one of the first ever systems to utilize brushless motor technology we have been able to reduce the size of the receiver to just 85 x 32 x 21 mm (excluding aerial)
  • Approx 90g
  • 3x Motor ports as standard (Lemo 0B 4-pin size)
  • Unique RTM bus architecture enables further ports via an affordable 7 motor break-out box ( coming soon ).
  • Support for Wired-Mode, bypassing the Radio link.
  • Camera run/stop support for Arri and Red cameras.
  • Standard 1/4"-20 mounting thread.
  • Micro USB port for PC control & firmware updates.
  • Optional: Power cables available for Anton Bauer PowerTap/D-Tap, XLR, Lemo, Fischer, Hirose.
  • Optional: (Coming 2013) In-line cable dongle to support lens motors from Heden, Preston, Arri, Betz, Loon etc converting them into smart motors.
  • WORLWIDE LEGAL FREQUENCY BAND.
